2026-07-30 at 1:31 PM #19756
jsterling
Participant
I’m working on building a sensor station using a Mayfly Data Logger v. 1.1, EnviroDIY cellular bee, a Hydros 21 CTD sensor. I am using the sketch EnviroDIY_Monitoring_Kit.ino and the Modular Sensor Libraries v0.37.0. I am having a difficult time getting my sketch to compile. I am receiving the following error that it cant find MonitorMyWatershedPublisher.h. Am I using the correct libraries for this sketch? I’ve attached a photo of my error. Thanks!

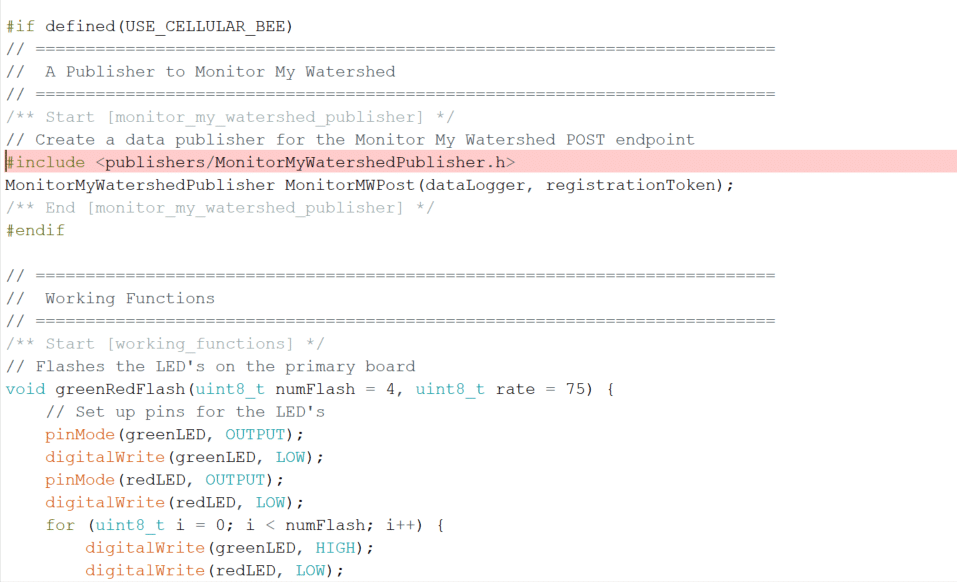

fatal error: publishers/MonitorMyWatershedPublisher.h: No such file or directory
#include <publishers/MonitorMyWatershedPublisher.h>
^~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
compilation terminated.
exit status 1
publishers/MonitorMyWatershedPublisher.h: No such file or directory

1
Attachments:
1. error-1.png

2026-07-30 at 2:12 PM #19758

Participant

/** =========================================================================
 * @example{lineno} EnviroDIY_Monitoring_Kit.ino
 * @copyright Stroud Water Research Center
 * @license This example is published under the BSD-3 license.
 * @author Sara Geleskie Damiano <sdamiano@stroudcenter.org>
 *
 * @brief Example for DRWI CitSci LTE sites.
 *
 * Example sketch to be used with the [EnviroDIY Monitoring Station
 * Kit](https://www.envirodiy.org/product/envirodiy-monitoring-station-kit/).
 *
 * See [the walkthrough page](@ref example_envirodiy_monitoring_kit) for
 * detailed instructions.
 *
 * @m_examplenavigation{example_envirodiy_monitoring_kit,}
 * ======================================================================= */

// The Arduino library is needed for every Arduino program.
#include <Arduino.h>

// ==========================================================================
//  Configuration for the EnviroDIY Monitoring Station Kit
// ==========================================================================
/** Start [configuration] */

// Uncomment ONE of the following lines to select the "Bee" module you are
// using.  If you are not using a Bee module, you can skip this section and the
// sections for the modems in the code below.
// If you do not have a Bee module, you should comment out both.

//#define USE_WIFI_BEE
#define USE_CELLULAR_BEE

// Add your network information here.
// APN for cellular connection
#define CELLULAR_APN "YourAPN"
// WiFi access point name
#define WIFI_ID "YourWiFiSSID"
// WiFi password (WPA2)
#define WIFI_PASSWD "YourWiFiPassword"

/** End [configuration] */


// ==========================================================================
//  Data Logging Options
// ==========================================================================
/** Start [logging_options] */
// Logger ID, also becomes the prefix for the name of the data file on SD card
const char* LoggerID = "YourLoggerID";
// How frequently (in minutes) to log data
const int8_t loggingInterval = 15;
// Your logger's timezone.
const int8_t timeZone = -5;  // Eastern Standard Time
// NOTE:  Daylight savings time will not be applied!  Please use standard time!
/** End [logging_options] */


// ==========================================================================
//  UUIDs and Registration Tokens for Monitor My Watershed
// ==========================================================================
/** Start [monitor_mw_uuids] */

// All UUIDs, device registration, and sampling feature information can be
// pasted directly from Monitor My Watershed.
// To get the list, click the "View  token UUID list" button on the upper right
// of the site page.

// *** CAUTION --- CAUTION --- CAUTION --- CAUTION --- CAUTION ***
// Check the order of your variables this list!!!
// They MUST be in EXACTLY this order:

// Specific conductance (Meter_Hydros21_Cond)
// Water depth (Meter_Hydros21_Depth)
// Temperature (Meter_Hydros21_Temp)
// Battery voltage (EnviroDIY_Mayfly_Batt)
// Percent full scale (EnviroDIY_LTEB_SignalPercent or ESP32_SignalPercent)
// Relative humidity (Sensirion_SHT40_Humidity)
// Temperature (Sensirion_SHT40_Temperature)
// Illuminance (Everlight_AnalogALS_Illuminance)
// Temperature (Maxim_DS3231_Temp)

// If your variables on Monitor My Watershed are in a different order than the
// variableList array, you will need to rearrange the UUIDs below to match this
// order. If you don't, your data will be sent to the wrong place on Monitor My
// Watershed and will be very difficult to fix after the fact.
// *** CAUTION --- CAUTION --- CAUTION --- CAUTION --- CAUTION ***

// Replace all of the text in the following section with the UUID array from
// MonitorMyWatershed
/* clang-format off */
// ---------------------   Beginning of Token UUID List   ---------------------


const char *UUIDs[] =                                                      // UUID array for device sensors
{
    "",   // Specific conductance (Meter_Hydros21_Cond)
    "",   // Water depth (Meter_Hydros21_Depth)
    "",   // Temperature (Meter_Hydros21_Temp)
    "",   // Battery voltage (EnviroDIY_Mayfly_Batt)
    "",   // Percent full scale (EnviroDIY_LTEB_SignalPercent)
    ""    // Temperature (Maxim_DS18B20_Temp)
};
const char *registrationToken = "";   // Device registration token
const char *samplingFeature = "";     // Sampling feature UUID


// -----------------------   End of Token UUID List  -----------------------
/* clang-format on */
/** End [monitor_mw_uuids] */


// ==========================================================================
//  Include the libraries required for any data logger
// ==========================================================================
/** Start [includes] */
// Include the main header for ModularSensors
#include <ModularSensors.h>
/** End [includes] */


// ==========================================================================
//  Logger Pins and Options
// ==========================================================================
/** Start [logger_pins] */
// The name of this program file - this is used only for console printouts at
// start-up
const char* sketchName = "EnviroDIY_Monitoring_Kit.ino";

// Set the input and output pins for the logger
// NOTE:  Use -1 for pins that do not apply
const int32_t serialBaud    = 115200;  // Baud rate for debugging
const int8_t  greenLED      = 8;       // Pin for the green LED
const int8_t  redLED        = 9;       // Pin for the red LED
const int8_t  buttonPin     = 21;  // Pin for debugging mode (i.e., button pin)
uint8_t       buttonPinMode = INPUT;  // mode for debugging pin
const int8_t  wakePin       = 31;  // MCU interrupt/alarm pin to wake from sleep
uint8_t       wakePinMode   = INPUT_PULLUP;  // mode for wake pin
// Mayfly 0.x, 1.x D31 = A7
const int8_t sdCardPwrPin   = -1;  // MCU SD card power pin
const int8_t sdCardSSPin    = 12;  // SD card chip select/slave select pin
const int8_t flashSSPin     = 20;  // onboard flash chip select/slave select pin
const int8_t sensorPowerPin = 22;  // MCU pin controlling main sensor power
/** End [logger_pins] */


// ==========================================================================
//  The Logger Object[s]
// ==========================================================================
/** Start [loggers] */
// Create a new logger instance
Logger dataLogger(LoggerID, samplingFeature, loggingInterval);
/** End [loggers] */


// ==========================================================================
//  Wifi/Cellular Modem Options
// ==========================================================================
#ifdef USE_WIFI_BEE
/** Start [espressif_esp32] */
#include <modems/EspressifESP32.h>

// Create a reference to the serial port for the modem
HardwareSerial& modemSerial = Serial1;  // Use hardware serial if possible
int32_t         modemBaud   = 57600;    // Communication speed of the modem

// Modem Pins - Describe the physical pin connection of your modem to your board
// NOTE:  Use -1 for pins that do not apply
// Example pins here are for a EnviroDIY ESP32 Bluetooth/Wifi Bee with
// Mayfly 1.1
const int8_t modemVccPin   = 18;      // MCU pin controlling modem power
const int8_t modemResetPin = -1;      // MCU pin connected to modem reset pin
const int8_t modemLEDPin   = redLED;  // MCU pin connected an LED to show modem
                                      // status

// Network connection information
const char* wifiId  = WIFI_ID;      // WiFi access point name
const char* wifiPwd = WIFI_PASSWD;  // WiFi password (WPA2)

// Create the modem object
EspressifESP32 modemESP(&modemSerial, modemVccPin, modemResetPin, wifiId,
                        wifiPwd);
// Create an extra reference to the modem by a generic name
EspressifESP32 modem = modemESP;
/** End [espressif_esp32] */
#endif


#ifdef USE_CELLULAR_BEE
/** Start [sim_com_sim7080] */
// For almost anything based on the SIMCom SIM7080G
#include <modems/SIMComSIM7080.h>

// Create a reference to the serial port for the modem
HardwareSerial& modemSerial = Serial1;  // Use hardware serial if possible
const int32_t modemBaud = 57600;  //  SIM7080 does auto-bauding by default, but
                                  //  for simplicity we set to 57600

// Modem Pins - Describe the physical pin connection of your modem to your board
// NOTE:  Use -1 for pins that do not apply
const int8_t modemVccPin     = 18;
const int8_t modemStatusPin  = 19;  // MCU pin used to read modem status
const int8_t modemSleepRqPin = 23;  // MCU pin for modem sleep/wake request
const int8_t modemLEDPin = redLED;  // MCU pin connected an LED to show modem
                                    // status

// Network connection information
const char* apn = CELLULAR_APN;  // APN for GPRS connection

// Create the modem object
SIMComSIM7080 modem7080(&modemSerial, modemVccPin, modemStatusPin,
                        modemSleepRqPin, apn);
// Create an extra reference to the modem by a generic name
SIMComSIM7080 modem = modem7080;
/** End [sim_com_sim7080] */
#endif

// ==========================================================================
//  Using the Processor as a Sensor
// ==========================================================================
/** Start [processor_stats] */
#include <sensors/ProcessorStats.h>

// Create the main processor chip "sensor" - for general metadata
const char*    mcuBoardVersion = "v1.1";
ProcessorStats mcuBoard(mcuBoardVersion, 5);
/** End [processor_stats] */


// ==========================================================================
//  Maxim DS3231 RTC (Real Time Clock)
//  Built in on Mayfly 0.x and 1.x
// ==========================================================================
/** Start [maxim_ds3231] */
#include <sensors/MaximDS3231.h>

// Create a DS3231 sensor object
MaximDS3231 ds3231(1);
/** End [maxim_ds3231] */


// ==========================================================================
//  Everlight ALS-PT19 Ambient Light Sensor
//  Built in on Mayfly 1.x
// ==========================================================================
/** Start [everlight_alspt19] */
#include <sensors/EverlightALSPT19.h>

// NOTE: Use -1 for any pins that don't apply or aren't being used.
const int8_t  alsPower      = sensorPowerPin;  // Power pin
const int8_t  alsData       = A4;              // The ALS PT-19 data pin
const int8_t  alsSupply     = 3.3;  // The ALS PT-19 supply power voltage
const int8_t  alsResistance = 10;   // The ALS PT-19 loading resistance (in kΩ)
const uint8_t alsNumberReadings = 10;

// Create a Everlight ALS-PT19 sensor object
EverlightALSPT19 alsPt19(alsPower, alsData, alsSupply, alsResistance,
                         alsNumberReadings);
/** End [everlight_alspt19] */


// ==========================================================================
//  Sensirion SHT4X Digital Humidity and Temperature Sensor
//  Built in on Mayfly 1.x
// ==========================================================================
/** Start [sensirion_sht4x] */
#include <sensors/SensirionSHT4x.h>

// NOTE: Use -1 for any pins that don't apply or aren't being used.
const int8_t SHT4xPower     = sensorPowerPin;  // Power pin
const bool   SHT4xUseHeater = true;

// Create an Sensirion SHT4X sensor object
SensirionSHT4x sht4x(SHT4xPower, SHT4xUseHeater);
/** End [sensirion_sht4x] */


// ==========================================================================
//  Meter Hydros 21 Conductivity, Temperature, and Depth Sensor
// ==========================================================================
/** Start [hydros21] */
#include <sensors/MeterHydros21.h>

const char*   hydrosSDI12address = "1";  // The SDI-12 Address of the Hydros 21
const uint8_t hydrosNumberReadings = 6;  // The number of readings to average
const int8_t  SDI12Power = sensorPowerPin;  // Power pin (-1 if unconnected)
const int8_t  SDI12Data  = 7;               // The SDI12 data pin

// Create a Meter Hydros 21 sensor object
MeterHydros21 hydros(*hydrosSDI12address, SDI12Power, SDI12Data,
                     hydrosNumberReadings);
/** End [hydros21] */


/* clang-format off */
// ==========================================================================
//  Creating the Variable Array[s] and Filling with Variable Objects
// ==========================================================================
/** Start [variables_separate_uuids] */
Variable* variableList[] = {
    new MeterHydros21_Cond(&hydros),             // Specific conductance (Meter_Hydros21_Cond)
    new MeterHydros21_Depth(&hydros),            // Water depth (Meter_Hydros21_Depth)
    new MeterHydros21_Temp(&hydros),             // Temperature (Meter_Hydros21_Temp)
    new ProcessorStats_Battery(&mcuBoard),       // Battery voltage (EnviroDIY_Mayfly_Batt)
    new Modem_SignalPercent(&modem),             // Percent full scale (EnviroDIY_LTEB_SignalPercent)
    new MaximDS3231_Temp(&ds3231),               // Temperature (Maxim_DS3231_Temp)
};
/* clang-format on */

// Count up the number of pointers in the array
int variableCount = sizeof(variableList) / sizeof(variableList[0]);
// Create the VariableArray object and attach the UUIDs
VariableArray varArray(variableCount, variableList, UUIDs);
/** End [variables_separate_uuids] */
// ==========================================================================


#if defined(USE_CELLULAR_BEE) || defined(USE_WIFI_BEE)
// ==========================================================================
//  A Publisher to Monitor My Watershed
// ==========================================================================
/** Start [monitor_my_watershed_publisher] */
// Create a data publisher for the Monitor My Watershed POST endpoint
#include <publishers/MonitorMyWatershedPublisher.h>
MonitorMyWatershedPublisher MonitorMWPost(dataLogger, registrationToken);
/** End [monitor_my_watershed_publisher] */
#endif

// ==========================================================================
//  Working Functions
// ==========================================================================
/** Start [working_functions] */
// Flashes the LED's on the primary board
void greenRedFlash(uint8_t numFlash = 4, uint8_t rate = 75) {
    // Set up pins for the LED's
    pinMode(greenLED, OUTPUT);
    digitalWrite(greenLED, LOW);
    pinMode(redLED, OUTPUT);
    digitalWrite(redLED, LOW);
    for (uint8_t i = 0; i < numFlash; i++) {
        digitalWrite(greenLED, HIGH);
        digitalWrite(redLED, LOW);
        delay(rate);
        digitalWrite(greenLED, LOW);
        digitalWrite(redLED, HIGH);
        delay(rate);
    }
    digitalWrite(redLED, LOW);
}

// Uses the processor sensor object to read the battery voltage
// NOTE: This will actually return the battery level from the previous update!
float getBatteryVoltage() {
    if (mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM] == MS_INVALID_VALUE ||
        mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM] == 0) {
        mcuBoard.update();
    }
    return mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM];
}


// ==========================================================================
//  Arduino Setup Function
// ==========================================================================
void setup() {
    /** Start [setup_flashing_led] */
    // Blink the LEDs to show the board is on and starting up
    greenRedFlash(3, 35);
    /** End [setup_flashing_led] */
    // Start the primary serial connection
    Serial.begin(serialBaud);

    greenRedFlash(5, 50);

    // Print a start-up note to the first serial port
    PRINTOUT("\n\n\n=============================");
    PRINTOUT("=============================");
    PRINTOUT("=============================");
    PRINTOUT(F("\n\nNow running"), sketchName, F("on Logger"), LoggerID, '\n');

    PRINTOUT(F("Using ModularSensors Library version"),
             MODULAR_SENSORS_VERSION);
#if defined(USE_CELLULAR_BEE) || defined(USE_WIFI_BEE)
    PRINTOUT(F("TinyGSM Library version"), TINYGSM_VERSION, '\n');
#endif
    PRINTOUT(F("Processor:"), mcuBoard.getSensorLocation());
    PRINTOUT(F("The most recent reset cause was"), mcuBoard.getLastResetCode(),
             '(', mcuBoard.getLastResetCause(), ")\n");
    /** End [setup_prints] */

/** Start [setup_serial_begins] */
// Start the serial connection with the modem
#if defined(USE_CELLULAR_BEE) || defined(USE_WIFI_BEE)
    PRINTOUT(F("Starting modem connection at"), modemBaud, F("baud"));
    modemSerial.begin(modemBaud);
#endif

    // Start the SPI library
    PRINTOUT(F("Starting SPI"));
    SPI.begin();

#if defined(EXTERNAL_FLASH_DEVICES)
    PRINTOUT(F("Setting onboard flash pin modes"));
    pinMode(flashSSPin,
            OUTPUT);  // for proper operation of the onboard flash memory
#endif

    PRINTOUT(F("Starting I2C (Wire)"));
    Wire.begin();

    /** Start [setup_logger] */

    // set the logger ID
    PRINTOUT(F("Setting logger id to"), LoggerID);
    dataLogger.setLoggerID(LoggerID);
    PRINTOUT(F("Setting the sampling feature UUID to"), LoggerID);
    dataLogger.setSamplingFeatureUUID(samplingFeature);
    // set the logging interval
    PRINTOUT(F("Setting logging interval to"), loggingInterval, F("minutes"));
    dataLogger.setLoggingInterval(loggingInterval);
    PRINTOUT(F("Setting number of initial 1 minute intervals to 10"));
    dataLogger.setStartupMeasurements(10);
    // Attach the variable array to the logger
    PRINTOUT(F("Attaching the variable array"));
    dataLogger.setVariableArray(&varArray);
    // set logger pins
    PRINTOUT(F("Setting logger pins"));
    dataLogger.setLoggerPins(wakePin, sdCardSSPin, sdCardPwrPin, buttonPin,
                             greenLED, wakePinMode, buttonPinMode);

    // Set the timezones for the logger/data and the RTC
    // Logging in the given time zone
    PRINTOUT(F("Setting logger time zone"));
    Logger::setLoggerTimeZone(timeZone);
    // It is STRONGLY RECOMMENDED that you set the RTC to be in UTC (UTC+0)
    loggerClock::setRTCOffset(0);

#if defined(USE_CELLULAR_BEE) || defined(USE_WIFI_BEE)
    // Attach the modem and information pins to the logger
    PRINTOUT(F("Attaching the modem"));
    dataLogger.attachModem(modem);
    PRINTOUT(F("Setting modem LEDs"));
    modem.setModemLED(modemLEDPin);
#endif

    // Begin the logger
    PRINTOUT(F("Beginning the logger"));
    dataLogger.begin();
    /** End [setup_logger] */

    /** Start [setup_sensors] */
    // Note:  Please change these battery voltages to match your battery
    // Set up the sensors, except at lowest battery level
    if (getBatteryVoltage() > 3.4) {
        PRINTOUT(F("Setting up sensors..."));
        varArray.sensorsPowerUp();
        varArray.setupSensors();
        varArray.sensorsPowerDown();
    }
    /** End [setup_sensors] */

#ifdef USE_WIFI_BEE
    /** Start [setup_esp] */
    PRINTOUT(F("Waking the modem.."));
    PRINTOUT(F("Attempting to begin modem communication at"), modemBaud,
             F("baud.  This will fail if the baud is mismatched.."));
    modemSerial.begin(modemBaud);
    modem.modemWake();  // NOTE:  This will also set up the modem
    // WARNING: PLEASE REMOVE BAUD RATE DETECTION/FORCING FOR PRODUCTION CODE!
    if (!modem.gsmModem.testAT()) {
        // If the AT command test fails, chances are it's a baud rate issue. Try
        // to detect the baud rate and force the baud rate to the correct one.
        PRINTOUT(F("Attempting to force the modem baud rate."));
        modem.gsmModem.forceModemBaud(modemSerial,
                                      static_cast<uint32_t>(modemBaud));
    }
/** End [setup_esp] */
#endif

#ifdef USE_CELLULAR_BEE
    /** Start [setup_sim7080] */
    modem.setModemWakeLevel(HIGH);   // ModuleFun Bee inverts the signal
    modem.setModemResetLevel(HIGH);  // ModuleFun Bee inverts the signal
    PRINTOUT(F("Waking modem and setting Cellular Carrier Options..."));
    modem.modemWake();  // NOTE:  This will also set up the modem
    // WARNING: PLEASE REMOVE BAUD RATE DETECTION/FORCING FOR PRODUCTION CODE!
    if (!modem.gsmModem.testAT()) {
        // If the AT command test fails, chances are it's a baud rate issue. Try
        // to detect the baud rate and force the baud rate to the correct one.
        PRINTOUT(F("Attempting to force the modem baud rate."));
        modem.gsmModem.forceModemBaud(modemSerial,
                                      static_cast<uint32_t>(modemBaud));
    }
    modem.gsmModem.setNetworkMode(38);   // set to LTE only
                                         // 2 Automatic
                                         // 13 GSM only
                                         // 38 LTE only
                                         // 51 GSM and LTE only
    modem.gsmModem.setPreferredMode(1);  // set to CAT-M
                                         // 1 CAT-M
                                         // 2 NB-IoT
                                         // 3 CAT-M and NB-IoT
/** End [setup_sim7080] */
#endif

    /** Start [setup_clock] */
    // Sync the clock if it isn't valid or we have battery to spare
    if (getBatteryVoltage() > 3.55 || !loggerClock::isRTCSane()) {
        // Set up the modem, synchronize the RTC with NIST, and publish
        // configuration information to publishers that support it.
        dataLogger.makeInitialConnections();
    }
    /** End [setup_clock] */

    /** Start [setup_file] */
    // Create the log file, adding the default header to it
    // Do this last so we have the best chance of getting the time correct and
    // all sensor names correct.
    // Writing to the SD card can be power intensive, so if we're skipping the
    // sensor setup we'll skip this too.
    if (getBatteryVoltage() > 3.4) {
        PRINTOUT(F("Setting up file on SD card"));
        dataLogger.turnOnSDcard(true);
        // true = wait for card to settle after power up
        dataLogger.createLogFile(true);  // true = write a new header
        dataLogger.turnOffSDcard(true);
        // true = wait for internal housekeeping after write
    }
    /** End [setup_file] */

    /** Start [setup_sleep] */
    // Call the processor sleep
    PRINTOUT(F("Putting processor to sleep\n"));
    dataLogger.systemSleep();
    /** End [setup_sleep] */
}


// ==========================================================================
//  Arduino Loop Function
// ==========================================================================
/** Start [simple_loop] */
// Use this short loop for simple data logging and sending
void loop() {
    // Note:  Please change these battery voltages to match your battery
    // At very low battery, just go back to sleep
    if (getBatteryVoltage() < 3.4) {
        PRINTOUT(F("Battery too low, ("),
                 mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM],
                 F("V) going back to sleep."));
        dataLogger.systemSleep();
#if defined(USE_CELLULAR_BEE) || defined(USE_WIFI_BEE)
    } else if (getBatteryVoltage() < 3.55) {
        // At moderate voltage, log data but don't send it over the modem
        PRINTOUT(F("Battery at"),
                 mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM],
                 F("V; high enough to log, but will not publish!"));
        dataLogger.logData();
    } else {
        // If the battery is good, send the data to the world
        PRINTOUT(F("Battery at"),
                 mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM],
                 F("V; high enough to log and publish data"));
        dataLogger.logDataAndPublish();
    }
#else
    } else {
        // If the battery is good enough to log, log the data but we have no
        // modem so we can't publish
        PRINTOUT(F("Battery at"),
                 mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM],
                 F("V; high enough to log data"));
        dataLogger.logData();
    }
#endif
}
/** End [simple_loop] */

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

/** =========================================================================

* @example{lineno} EnviroDIY_Monitoring_Kit.ino

* @copyright Stroud Water Research Center

* @license This example is published under the BSD-3 license.

* @author Sara Geleskie Damiano <sdamiano@stroudcenter.org>

* @brief Example for DRWI CitSci LTE sites.

* Example sketch to be used with the [EnviroDIY Monitoring Station

* Kit](https://www.envirodiy.org/product/envirodiy-monitoring-station-kit/).

* See [the walkthrough page](@ref example_envirodiy_monitoring_kit) for

* detailed instructions.

* @m_examplenavigation{example_envirodiy_monitoring_kit,}

* ======================================================================= */

// The Arduino library is needed for every Arduino program.

#include <Arduino.h>

// ==========================================================================

// Configuration for the EnviroDIY Monitoring Station Kit

// ==========================================================================

/** Start [configuration] */

// Uncomment ONE of the following lines to select the "Bee" module you are

// using. If you are not using a Bee module, you can skip this section and the

// sections for the modems in the code below.

// If you do not have a Bee module, you should comment out both.

//#define USE_WIFI_BEE

#define USE_CELLULAR_BEE

// Add your network information here.

// APN for cellular connection

#define CELLULAR_APN "YourAPN"

// WiFi access point name

#define WIFI_ID "YourWiFiSSID"

// WiFi password (WPA2)

#define WIFI_PASSWD "YourWiFiPassword"

/** End [configuration] */

// ==========================================================================

// Data Logging Options

// ==========================================================================

/** Start [logging_options] */

// Logger ID, also becomes the prefix for the name of the data file on SD card

const char* LoggerID = "YourLoggerID";

// How frequently (in minutes) to log data

const int8_t loggingInterval = 15;

// Your logger's timezone.

const int8_t timeZone = -5; // Eastern Standard Time

// NOTE: Daylight savings time will not be applied! Please use standard time!

/** End [logging_options] */

// ==========================================================================

// UUIDs and Registration Tokens for Monitor My Watershed

// ==========================================================================

/** Start [monitor_mw_uuids] */

// All UUIDs, device registration, and sampling feature information can be

// pasted directly from Monitor My Watershed.

// To get the list, click the "View token UUID list" button on the upper right

// of the site page.

// *** CAUTION --- CAUTION --- CAUTION --- CAUTION --- CAUTION ***

// Check the order of your variables this list!!!

// They MUST be in EXACTLY this order:

// Specific conductance (Meter_Hydros21_Cond)

// Water depth (Meter_Hydros21_Depth)

// Temperature (Meter_Hydros21_Temp)

// Battery voltage (EnviroDIY_Mayfly_Batt)

// Percent full scale (EnviroDIY_LTEB_SignalPercent or ESP32_SignalPercent)

// Relative humidity (Sensirion_SHT40_Humidity)

// Temperature (Sensirion_SHT40_Temperature)

// Illuminance (Everlight_AnalogALS_Illuminance)

// Temperature (Maxim_DS3231_Temp)

// If your variables on Monitor My Watershed are in a different order than the

// variableList array, you will need to rearrange the UUIDs below to match this

// order. If you don't, your data will be sent to the wrong place on Monitor My

// Watershed and will be very difficult to fix after the fact.

// *** CAUTION --- CAUTION --- CAUTION --- CAUTION --- CAUTION ***

// Replace all of the text in the following section with the UUID array from

// MonitorMyWatershed

/* clang-format off */

// --------------------- Beginning of Token UUID List ---------------------

const char *UUIDs[] = // UUID array for device sensors

{

"", // Specific conductance (Meter_Hydros21_Cond)

"", // Water depth (Meter_Hydros21_Depth)

"", // Temperature (Meter_Hydros21_Temp)

"", // Battery voltage (EnviroDIY_Mayfly_Batt)

"", // Percent full scale (EnviroDIY_LTEB_SignalPercent)

"" // Temperature (Maxim_DS18B20_Temp)

};

const char *registrationToken = ""; // Device registration token

const char *samplingFeature = ""; // Sampling feature UUID

// ----------------------- End of Token UUID List -----------------------

/* clang-format on */

/** End [monitor_mw_uuids] */

// ==========================================================================

// Include the libraries required for any data logger

// ==========================================================================

/** Start [includes] */

// Include the main header for ModularSensors

#include <ModularSensors.h>

/** End [includes] */

// ==========================================================================

// Logger Pins and Options

// ==========================================================================

/** Start [logger_pins] */

// The name of this program file - this is used only for console printouts at

// start-up

const char* sketchName = "EnviroDIY_Monitoring_Kit.ino";

// Set the input and output pins for the logger

// NOTE: Use -1 for pins that do not apply

const int32_t serialBaud = 115200; // Baud rate for debugging

const int8_t greenLED = 8; // Pin for the green LED

const int8_t redLED = 9; // Pin for the red LED

const int8_t buttonPin = 21; // Pin for debugging mode (i.e., button pin)

uint8_t buttonPinMode = INPUT; // mode for debugging pin

const int8_t wakePin = 31; // MCU interrupt/alarm pin to wake from sleep

uint8_t wakePinMode = INPUT_PULLUP; // mode for wake pin

// Mayfly 0.x, 1.x D31 = A7

const int8_t sdCardPwrPin = -1; // MCU SD card power pin

const int8_t sdCardSSPin = 12; // SD card chip select/slave select pin

const int8_t flashSSPin = 20; // onboard flash chip select/slave select pin

const int8_t sensorPowerPin = 22; // MCU pin controlling main sensor power

/** End [logger_pins] */

// ==========================================================================

// The Logger Object[s]

// ==========================================================================

/** Start [loggers] */

// Create a new logger instance

Logger dataLogger(LoggerID, samplingFeature, loggingInterval);

/** End [loggers] */

// ==========================================================================

// Wifi/Cellular Modem Options

// ==========================================================================

#ifdef USE_WIFI_BEE

/** Start [espressif_esp32] */

#include <modems/EspressifESP32.h>

// Create a reference to the serial port for the modem

HardwareSerial& modemSerial = Serial1; // Use hardware serial if possible

int32_t modemBaud = 57600; // Communication speed of the modem

// Modem Pins - Describe the physical pin connection of your modem to your board

// NOTE: Use -1 for pins that do not apply

// Example pins here are for a EnviroDIY ESP32 Bluetooth/Wifi Bee with

// Mayfly 1.1

const int8_t modemVccPin = 18; // MCU pin controlling modem power

const int8_t modemResetPin = -1; // MCU pin connected to modem reset pin

const int8_t modemLEDPin = redLED; // MCU pin connected an LED to show modem

// status

// Network connection information

const char* wifiId = WIFI_ID; // WiFi access point name

const char* wifiPwd = WIFI_PASSWD; // WiFi password (WPA2)

// Create the modem object

EspressifESP32 modemESP(&modemSerial, modemVccPin, modemResetPin, wifiId,

wifiPwd);

// Create an extra reference to the modem by a generic name

EspressifESP32 modem = modemESP;

/** End [espressif_esp32] */

#endif

#ifdef USE_CELLULAR_BEE

/** Start [sim_com_sim7080] */

// For almost anything based on the SIMCom SIM7080G

#include <modems/SIMComSIM7080.h>

// Create a reference to the serial port for the modem

HardwareSerial& modemSerial = Serial1; // Use hardware serial if possible

const int32_t modemBaud = 57600; // SIM7080 does auto-bauding by default, but

// for simplicity we set to 57600

// Modem Pins - Describe the physical pin connection of your modem to your board

// NOTE: Use -1 for pins that do not apply

const int8_t modemVccPin = 18;

const int8_t modemStatusPin = 19; // MCU pin used to read modem status

const int8_t modemSleepRqPin = 23; // MCU pin for modem sleep/wake request

const int8_t modemLEDPin = redLED; // MCU pin connected an LED to show modem

// status

// Network connection information

const char* apn = CELLULAR_APN; // APN for GPRS connection

// Create the modem object

SIMComSIM7080 modem7080(&modemSerial, modemVccPin, modemStatusPin,

modemSleepRqPin, apn);

// Create an extra reference to the modem by a generic name

SIMComSIM7080 modem = modem7080;

/** End [sim_com_sim7080] */

#endif

// ==========================================================================

// Using the Processor as a Sensor

// ==========================================================================

/** Start [processor_stats] */

#include <sensors/ProcessorStats.h>

// Create the main processor chip "sensor" - for general metadata

const char* mcuBoardVersion = "v1.1";

ProcessorStats mcuBoard(mcuBoardVersion, 5);

/** End [processor_stats] */

// ==========================================================================

// Maxim DS3231 RTC (Real Time Clock)

// Built in on Mayfly 0.x and 1.x

// ==========================================================================

/** Start [maxim_ds3231] */

#include <sensors/MaximDS3231.h>

// Create a DS3231 sensor object

MaximDS3231 ds3231(1);

/** End [maxim_ds3231] */

// ==========================================================================

// Everlight ALS-PT19 Ambient Light Sensor

// Built in on Mayfly 1.x

// ==========================================================================

/** Start [everlight_alspt19] */

#include <sensors/EverlightALSPT19.h>

// NOTE: Use -1 for any pins that don't apply or aren't being used.

const int8_t alsPower = sensorPowerPin; // Power pin

const int8_t alsData = A4; // The ALS PT-19 data pin

const int8_t alsSupply = 3.3; // The ALS PT-19 supply power voltage

const int8_t alsResistance = 10; // The ALS PT-19 loading resistance (in kΩ)

const uint8_t alsNumberReadings = 10;

// Create a Everlight ALS-PT19 sensor object

EverlightALSPT19 alsPt19(alsPower, alsData, alsSupply, alsResistance,

alsNumberReadings);

/** End [everlight_alspt19] */

// ==========================================================================

// Sensirion SHT4X Digital Humidity and Temperature Sensor

// Built in on Mayfly 1.x

// ==========================================================================

/** Start [sensirion_sht4x] */

#include <sensors/SensirionSHT4x.h>

// NOTE: Use -1 for any pins that don't apply or aren't being used.

const int8_t SHT4xPower = sensorPowerPin; // Power pin

const bool SHT4xUseHeater = true;

// Create an Sensirion SHT4X sensor object

SensirionSHT4x sht4x(SHT4xPower, SHT4xUseHeater);

/** End [sensirion_sht4x] */

// ==========================================================================

// Meter Hydros 21 Conductivity, Temperature, and Depth Sensor

// ==========================================================================

/** Start [hydros21] */

#include <sensors/MeterHydros21.h>

const char* hydrosSDI12address = "1"; // The SDI-12 Address of the Hydros 21

const uint8_t hydrosNumberReadings = 6; // The number of readings to average

const int8_t SDI12Power = sensorPowerPin; // Power pin (-1 if unconnected)

const int8_t SDI12Data = 7; // The SDI12 data pin

// Create a Meter Hydros 21 sensor object

MeterHydros21 hydros(*hydrosSDI12address, SDI12Power, SDI12Data,

hydrosNumberReadings);

/** End [hydros21] */

/* clang-format off */

// ==========================================================================

// Creating the Variable Array[s] and Filling with Variable Objects

// ==========================================================================

/** Start [variables_separate_uuids] */

Variable* variableList[] = {

new MeterHydros21_Cond(&hydros), // Specific conductance (Meter_Hydros21_Cond)

new MeterHydros21_Depth(&hydros), // Water depth (Meter_Hydros21_Depth)

new MeterHydros21_Temp(&hydros), // Temperature (Meter_Hydros21_Temp)

new ProcessorStats_Battery(&mcuBoard), // Battery voltage (EnviroDIY_Mayfly_Batt)

new Modem_SignalPercent(&modem), // Percent full scale (EnviroDIY_LTEB_SignalPercent)

new MaximDS3231_Temp(&ds3231), // Temperature (Maxim_DS3231_Temp)

};

/* clang-format on */

// Count up the number of pointers in the array

int variableCount = sizeof(variableList) / sizeof(variableList[0]);

// Create the VariableArray object and attach the UUIDs

VariableArray varArray(variableCount, variableList, UUIDs);

/** End [variables_separate_uuids] */

// ==========================================================================

#if defined(USE_CELLULAR_BEE) || defined(USE_WIFI_BEE)

// ==========================================================================

// A Publisher to Monitor My Watershed

// ==========================================================================

/** Start [monitor_my_watershed_publisher] */

// Create a data publisher for the Monitor My Watershed POST endpoint

#include <publishers/MonitorMyWatershedPublisher.h>

MonitorMyWatershedPublisher MonitorMWPost(dataLogger, registrationToken);

/** End [monitor_my_watershed_publisher] */

#endif

// ==========================================================================

// Working Functions

// ==========================================================================

/** Start [working_functions] */

// Flashes the LED's on the primary board

void greenRedFlash(uint8_t numFlash = 4, uint8_t rate = 75) {

// Set up pins for the LED's

pinMode(greenLED, OUTPUT);

digitalWrite(greenLED, LOW);

pinMode(redLED, OUTPUT);

digitalWrite(redLED, LOW);

for (uint8_t i = 0; i < numFlash; i++) {

digitalWrite(greenLED, HIGH);

digitalWrite(redLED, LOW);

delay(rate);

digitalWrite(greenLED, LOW);

digitalWrite(redLED, HIGH);

delay(rate);

}

digitalWrite(redLED, LOW);

}

// Uses the processor sensor object to read the battery voltage

// NOTE: This will actually return the battery level from the previous update!

float getBatteryVoltage() {

if (mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM] == MS_INVALID_VALUE ||

mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM] == 0) {

mcuBoard.update();

}

return mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM];

}

// ==========================================================================

// Arduino Setup Function

// ==========================================================================

void setup() {

/** Start [setup_flashing_led] */

// Blink the LEDs to show the board is on and starting up

greenRedFlash(3, 35);

/** End [setup_flashing_led] */

// Start the primary serial connection

Serial.begin(serialBaud);

greenRedFlash(5, 50);

// Print a start-up note to the first serial port

PRINTOUT("\n\n\n=============================");

PRINTOUT("=============================");

PRINTOUT(F("\n\nNow running"), sketchName, F("on Logger"), LoggerID, '\n');

PRINTOUT(F("Using ModularSensors Library version"),

MODULAR_SENSORS_VERSION);

#if defined(USE_CELLULAR_BEE) || defined(USE_WIFI_BEE)

PRINTOUT(F("TinyGSM Library version"), TINYGSM_VERSION, '\n');

#endif

PRINTOUT(F("Processor:"), mcuBoard.getSensorLocation());

PRINTOUT(F("The most recent reset cause was"), mcuBoard.getLastResetCode(),

'(', mcuBoard.getLastResetCause(), ")\n");

/** End [setup_prints] */

/** Start [setup_serial_begins] */

// Start the serial connection with the modem

#if defined(USE_CELLULAR_BEE) || defined(USE_WIFI_BEE)

PRINTOUT(F("Starting modem connection at"), modemBaud, F("baud"));

modemSerial.begin(modemBaud);

#endif

// Start the SPI library

PRINTOUT(F("Starting SPI"));

SPI.begin();

#if defined(EXTERNAL_FLASH_DEVICES)

PRINTOUT(F("Setting onboard flash pin modes"));

pinMode(flashSSPin,

OUTPUT); // for proper operation of the onboard flash memory

#endif

PRINTOUT(F("Starting I2C (Wire)"));

Wire.begin();

/** Start [setup_logger] */

// set the logger ID

PRINTOUT(F("Setting logger id to"), LoggerID);

dataLogger.setLoggerID(LoggerID);

PRINTOUT(F("Setting the sampling feature UUID to"), LoggerID);

dataLogger.setSamplingFeatureUUID(samplingFeature);

// set the logging interval

PRINTOUT(F("Setting logging interval to"), loggingInterval, F("minutes"));

dataLogger.setLoggingInterval(loggingInterval);

PRINTOUT(F("Setting number of initial 1 minute intervals to 10"));

dataLogger.setStartupMeasurements(10);

// Attach the variable array to the logger

PRINTOUT(F("Attaching the variable array"));

dataLogger.setVariableArray(&varArray);

// set logger pins

PRINTOUT(F("Setting logger pins"));

dataLogger.setLoggerPins(wakePin, sdCardSSPin, sdCardPwrPin, buttonPin,

greenLED, wakePinMode, buttonPinMode);

// Set the timezones for the logger/data and the RTC

// Logging in the given time zone

PRINTOUT(F("Setting logger time zone"));

Logger::setLoggerTimeZone(timeZone);

// It is STRONGLY RECOMMENDED that you set the RTC to be in UTC (UTC+0)

loggerClock::setRTCOffset(0);

#if defined(USE_CELLULAR_BEE) || defined(USE_WIFI_BEE)

// Attach the modem and information pins to the logger

PRINTOUT(F("Attaching the modem"));

dataLogger.attachModem(modem);

PRINTOUT(F("Setting modem LEDs"));

modem.setModemLED(modemLEDPin);

#endif

// Begin the logger

PRINTOUT(F("Beginning the logger"));

dataLogger.begin();

/** End [setup_logger] */

/** Start [setup_sensors] */

// Note: Please change these battery voltages to match your battery

// Set up the sensors, except at lowest battery level

if (getBatteryVoltage() > 3.4) {

PRINTOUT(F("Setting up sensors..."));

varArray.sensorsPowerUp();

varArray.setupSensors();

varArray.sensorsPowerDown();

}

/** End [setup_sensors] */

#ifdef USE_WIFI_BEE

/** Start [setup_esp] */

PRINTOUT(F("Waking the modem.."));

PRINTOUT(F("Attempting to begin modem communication at"), modemBaud,

F("baud. This will fail if the baud is mismatched.."));

modemSerial.begin(modemBaud);

modem.modemWake(); // NOTE: This will also set up the modem

// WARNING: PLEASE REMOVE BAUD RATE DETECTION/FORCING FOR PRODUCTION CODE!

if (!modem.gsmModem.testAT()) {

// If the AT command test fails, chances are it's a baud rate issue. Try

// to detect the baud rate and force the baud rate to the correct one.

PRINTOUT(F("Attempting to force the modem baud rate."));

modem.gsmModem.forceModemBaud(modemSerial,

static_cast<uint32_t>(modemBaud));

}

/** End [setup_esp] */

#endif

#ifdef USE_CELLULAR_BEE

/** Start [setup_sim7080] */

modem.setModemWakeLevel(HIGH); // ModuleFun Bee inverts the signal

modem.setModemResetLevel(HIGH); // ModuleFun Bee inverts the signal

PRINTOUT(F("Waking modem and setting Cellular Carrier Options..."));

modem.modemWake(); // NOTE: This will also set up the modem

// WARNING: PLEASE REMOVE BAUD RATE DETECTION/FORCING FOR PRODUCTION CODE!

if (!modem.gsmModem.testAT()) {

// If the AT command test fails, chances are it's a baud rate issue. Try

// to detect the baud rate and force the baud rate to the correct one.

PRINTOUT(F("Attempting to force the modem baud rate."));

modem.gsmModem.forceModemBaud(modemSerial,

static_cast<uint32_t>(modemBaud));

}

modem.gsmModem.setNetworkMode(38); // set to LTE only

// 2 Automatic

// 13 GSM only

// 38 LTE only

// 51 GSM and LTE only

modem.gsmModem.setPreferredMode(1); // set to CAT-M

// 1 CAT-M

// 2 NB-IoT

// 3 CAT-M and NB-IoT

/** End [setup_sim7080] */

#endif

/** Start [setup_clock] */

// Sync the clock if it isn't valid or we have battery to spare

if (getBatteryVoltage() > 3.55 || !loggerClock::isRTCSane()) {

// Set up the modem, synchronize the RTC with NIST, and publish

// configuration information to publishers that support it.

dataLogger.makeInitialConnections();

}

/** End [setup_clock] */

/** Start [setup_file] */

// Create the log file, adding the default header to it

// Do this last so we have the best chance of getting the time correct and

// all sensor names correct.

// Writing to the SD card can be power intensive, so if we're skipping the

// sensor setup we'll skip this too.

if (getBatteryVoltage() > 3.4) {

PRINTOUT(F("Setting up file on SD card"));

dataLogger.turnOnSDcard(true);

// true = wait for card to settle after power up

dataLogger.createLogFile(true); // true = write a new header

dataLogger.turnOffSDcard(true);

// true = wait for internal housekeeping after write

}

/** End [setup_file] */

/** Start [setup_sleep] */

// Call the processor sleep

PRINTOUT(F("Putting processor to sleep\n"));

dataLogger.systemSleep();

/** End [setup_sleep] */

}

// ==========================================================================

// Arduino Loop Function

// ==========================================================================

/** Start [simple_loop] */

// Use this short loop for simple data logging and sending

void loop() {

// Note: Please change these battery voltages to match your battery

// At very low battery, just go back to sleep

if (getBatteryVoltage() < 3.4) {

PRINTOUT(F("Battery too low, ("),

mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM],

F("V) going back to sleep."));

dataLogger.systemSleep();

#if defined(USE_CELLULAR_BEE) || defined(USE_WIFI_BEE)

} else if (getBatteryVoltage() < 3.55) {

// At moderate voltage, log data but don't send it over the modem

PRINTOUT(F("Battery at"),

mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM],

F("V; high enough to log, but will not publish!"));

dataLogger.logData();

} else {

// If the battery is good, send the data to the world

PRINTOUT(F("Battery at"),

mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM],

F("V; high enough to log and publish data"));

dataLogger.logDataAndPublish();

}

#else

} else {

// If the battery is good enough to log, log the data but we have no

// modem so we can't publish

PRINTOUT(F("Battery at"),

mcuBoard.sensorValues[PROCESSOR_BATTERY_VAR_NUM],

F("V; high enough to log data"));

dataLogger.logData();

}

#endif

}

/** End [simple_loop] */

2026-08-04 at 5:23 PM #19765
Sara Damiano
Moderator
Ah. That example is written for the current “master” branch of the library, not the latest polished release. I’m way overdue for a new release, but there are some bugs I still need to fix.

Try starting from this example instead, which is matched to library release 0.37.0: https://github.com/EnviroDIY/ModularSensors/blob/v0.37.0/examples/DRWI_Mayfly1/DRWI_Mayfly1.ino

**DO NOT** use the current master branch as of 8/4/2026. There’s definitely a bug in for the SIM7080/EnviroDIY LTE module. Usually I keep the master branch functional and try to keep not-actually-working stuff in other branches, but as of today master is broken.

Author

Posts

Viewing 2 reply threads

You must be logged in to reply to this topic.

Attachments:
