Welcome to EnviroDIY, a community for do-it-yourself environmental science and monitoring. EnviroDIY is part of Home › Forums › Environmental Sensors › Hydros-21 Depth Temp Compensation
Tagged: barometric, CTD, density, Depth, Hydros21, Meter, temperature
- This topic has 13 replies, 7 voices, and was last updated 2021-06-25 at 12:14 AM by
neilh20.
-
AuthorPosts
-
-
2020-12-14 at 3:37 PM #14919My Hydros21 CTD-10 sensor depth output is highly affected by the diurnal stream temp fluctuations by upwards of 15 mm sometimes. This issue was noted in forum post # 13557:
I recently
My Hydros21 CTD-10 sensor depth output is highly affected by the diurnal stream temp fluctuations by upwards of 15 mm sometimes. This issue was noted in forum post # 13557:I recently got a quote for the CTD-10 (10m or 30′ – they only do the 10m now) with a fixed accuracy at 20C of 0.05% Full Scale or +-/5mm and no statement of how it varies with temperature (called temperature compensation).
UpdateJan9th: I got a reply from leo.rivera@metergroup.com “We typically evaluate this from 0 to 50C and we see somewhere around +/- 2 cm in that range. It does vary sensor-to-sensor and some sensors have lower sensitivity.”
So practically they are saying temperature compensation is challenging, and they could have the readings varied by ±25mm or 0.25% of scale – and they wouldn’t take the instrument back.

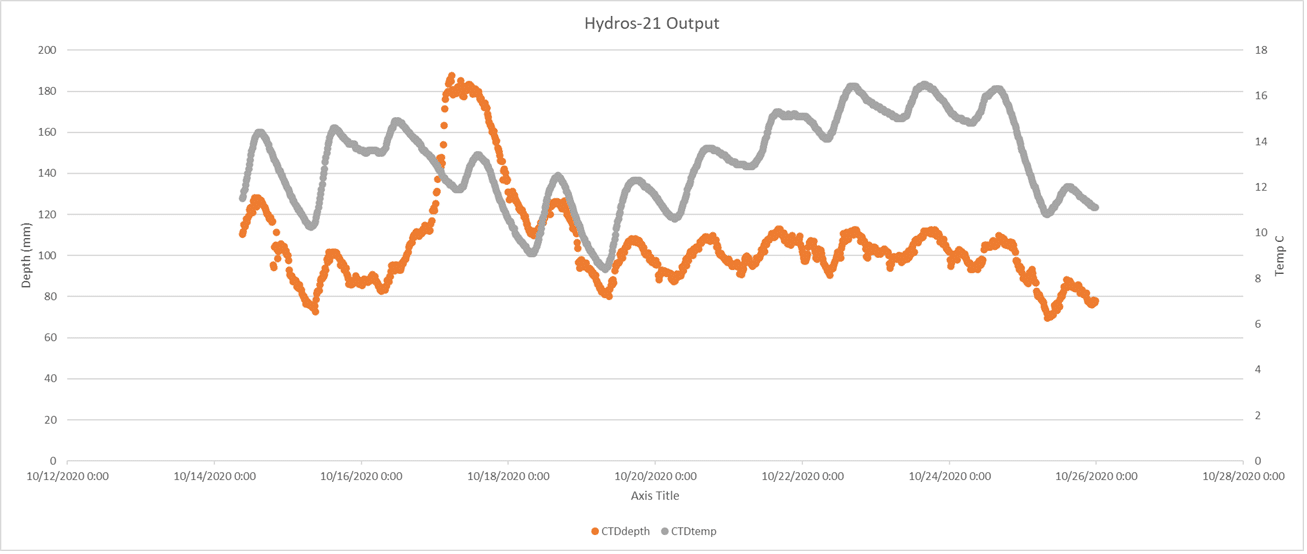

https://www.metergroup.com/environment/products/hydros-21-water-level-monitoring/ Quote $491 per sensor and with a 10-meter cable.I started a new thread since the original topic of that post was about something else. Has anyone else experienced this with their Hydros21 CTD-10? We used to have the CTD-5 which did not have this problem. This unit was damaged during cleaning and replaced under warranty with a CTD-10. The replacement unit showed this problem and we returned it thinking that it was defective – Meter acknowledged that this was a “known” issue. The second replacement sensor is experiencing the same issue (illustrated in the attached plot). If anyone has any insight into this or a method to fix the problem I would be interested in hearing about it. From the quoted thread above it seems like this output is normal and expected.
Thanks,
Dan
Attachments:
-
2021-03-26 at 3:27 PM #15324Hi Dan,
We recently did some internal testing of this issue and will post results soon. We don’t have a “fix”, but we did measure this behavior to guide our own interpretation of da
Hi Dan,We recently did some internal testing of this issue and will post results soon. We don’t have a “fix”, but we did measure this behavior to guide our own interpretation of data.
Scott
-
2021-04-13 at 12:05 PM #15378Hi Scott, I look forward to seeing your test results. Meter Group exchanged my Gen 1 Hydros21 with a brand new Gen2. I am programming it right now and will post new results after I test it. We are geaHi Scott, I look forward to seeing your test results. Meter Group exchanged my Gen 1 Hydros21 with a brand new Gen2. I am programming it right now and will post new results after I test it. We are gearing up to expand our Mayfly network and I want to make sure we are using a dependable sensor before we purchase several units.
Dan
-
2021-04-13 at 6:15 PM #15383
Hi Dan,
I’m curious whether it’s possible to identify Gen 1 vs Gen 2 Hydros21; are they labeled? I’m wondering what I’ve got.
Thanks,
Matt
-
2021-05-05 at 10:26 AM #15476Matt,
Sorry for the delayed response. You probably have the Gen 1 Hydros 21 sensor since the Gen 2 is brand new and I think I may have been the first one to get it. In fact, I can’t even use it
Matt,Sorry for the delayed response. You probably have the Gen 1 Hydros 21 sensor since the Gen 2 is brand new and I think I may have been the first one to get it. In fact, I can’t even use it yet because the ModularSensors library needs to be updated to handle some of the updates to the communications protocols. My Gen 2 has a black cable and the sensor sidewalls do not have holes like the Gen 1 has.
-Dan
-
2021-05-05 at 4:23 PM #15477Hi @dan-wachusett. I am about to order 10 x Hydros 21 units from METER Group. I have been told that they will be Gen 1, but Gen 2 will be released in a few weeks’ time. I’m trying to geHi @dan-wachusett. I am about to order 10 x Hydros 21 units from METER Group. I have been told that they will be Gen 1, but Gen 2 will be released in a few weeks’ time. I’m trying to get some details from METER Group about the upgrade and whether it would be worthwhile waiting for a couple of weeks to get the Gen 2.
I also see that the Gen 2 is not working with modular sensors yet. Any idea how long it will be before it can be used?
James
-
2021-05-05 at 5:36 PM #15478We recently received a Gen 2 Hyrdos 21 CTD sensor from Meter Group and have confirmed that it works just fine with the Mayfly Data Logger, and using our Modular Sensors library, with just a very smallWe recently received a Gen 2 Hyrdos 21 CTD sensor from Meter Group and have confirmed that it works just fine with the Mayfly Data Logger, and using our Modular Sensors library, with just a very small adjustment made to the library. We’re in the process of updating that now, so you should be good to order them and use them when they arrive.
-
2021-05-05 at 5:43 PM #15479Thanks @shicks, great to know. Would you recommend that I push back on them for Gen-2 sensors, even if they take a bit longer to get here? It seems silly to rush things through and end up with an inThanks @shicks, great to know. Would you recommend that I push back on them for Gen-2 sensors, even if they take a bit longer to get here? It seems silly to rush things through and end up with an inferior sensor.
James
-
2021-05-05 at 5:50 PM #15480We just got the sensor and haven’t done any comparison tests alongside the Gen 1 sensor to see if there’s a difference, so I can’t comment yet on anything data-wise, we just know thaWe just got the sensor and haven’t done any comparison tests alongside the Gen 1 sensor to see if there’s a difference, so I can’t comment yet on anything data-wise, we just know that there’s not a communication issue with the Mayfly now that we’ve adjusted the timing of the commands in our library.
-
2021-05-14 at 8:56 PM #15521There’s an example sketch in the Modular Sensors GitHub Repository with a calculated variable correction for water temperature (really it’s density, so it’s called rho and density inThere’s an example sketch in the Modular Sensors GitHub Repository with a calculated variable correction for water temperature (really it’s density, so it’s called rho and density in the sketch) that uses data from a temperature sensor. The same sketch has a calculated barometric correction.
https://github.com/EnviroDIY/ModularSensors/tree/master/examples/baro_rho_correction
-
2021-06-14 at 8:34 AM #15614Thanks @fisherba… I will take a look at the updated sketch. It seems like this correction should be part of the device firmware, but perhaps it was modified at some point and not included. I mayThanks @fisherba… I will take a look at the updated sketch. It seems like this correction should be part of the device firmware, but perhaps it was modified at some point and not included. I may try to apply this correction to my previous data downloads and see if fixes the issue. If so, then will update the sketch on the mayfly to perform this correction prior to writing data to the sd card. I’ll update this post with results once I get to it… which might not be until later this summer.
-
2021-06-14 at 12:01 PM #15616The Hydros-21 sensor already does internal temperature compensation of the depth data, so you shouldn’t have to provide your own compensation. The sensor outputs the depth readings in millimetThe Hydros-21 sensor already does internal temperature compensation of the depth data, so you shouldn’t have to provide your own compensation. The sensor outputs the depth readings in millimeters of water above the sensor, so you don’t even have access to the raw pressure readings like you might with a basic pressure transducer, so you’d have to do any corrections on the sensor’s already-corrected depth output. You could record temperature with a separate external temperature sensor, but we’ve found that the temperature reported by the CTD sensor is accurate, except in cases of extreme rapid temperature changes, in which case it takes anywhere from 5 to 15 minutes for the CTD temperature to match a DS18b20 sensor in the same water (like when we poured refrigerated water on a room-temperature sensor). The new Generation 2 Hydros-12 sensor had a quicker response to the temperature change than the old generation.
We do see a variability of about 5mm to 10mm in the depth reading if the sensor is in a constant depth of water but the water temperature changes from about 10C to 30C over the course of a day. However, that variability depends on the individual sensor, since we tested 10 different sensors all from the same production lot and found that some were more constant across temperature changes than others. So if micro-scale variations in depth or conductivity matter to your experiment, I’d recommend doing some controlled testing with your sensor in a lab environment where you can change the temperature of the water while recording sensor output to get a profile of how your individual sensor responds to changing temperatures. And since the conductivity readings of the Hydros-21 sensors are specific conductivity, then temperature sensitivity affects those readings as well, so check your conductivity readings over a range of temperatures as well. Some of the sensors are more accurate than others, but all of them have been within the design specs of the manufacturer’s stated accuracy levels, but it’s important to find out how precise your sensor is since it varies for each one.
-
2021-06-24 at 3:40 PM #15626Thanks Shannon, that is sound advice. We have 7 new Gen 2 Hydros-21 sensors and I will be delving in to this more later this summer. I do plan to test them in a controlled environment to make sure thaThanks Shannon, that is sound advice. We have 7 new Gen 2 Hydros-21 sensors and I will be delving in to this more later this summer. I do plan to test them in a controlled environment to make sure that the variation in output is within the accuracy range specified by the manufacturer.
-
2021-06-25 at 12:14 AM #15627Hi @dan-wachusett – I’d be interested to hear how your measurements work out.
This is what I did for acceptance testing (and
Hi @dan-wachusett – I’d be interested to hear how your measurements work out.This is what I did for acceptance testing (and characterizing) on a number of different types of depth sensors for a 2013 project – https://www.envirodiy.org/measuring-low-water-in-streams-accurately/
The update since then is the hydrologists I work with use the LT-500 for reliability and accuracy, and also been moving over from the Onset U30 to using the Mayfly.
I wonder, has anybody received a specification for the Hydros-21 Gen 2? .
Typically I find that manufactures create internal releases (generation 2?) as an internal cost reduction, with the same specification. Though every manufacturer is unique, so wondering what Metergroup changes might be :)). Insitu and Keller (and others) have different lines of depth sensors for different measurement accuracy and methods. The challenge for any manufacturer is the basic pressure sensor is similar – a pressure dependent resistor – piezo resistor. Temperature dependency of resistors is well studied, but challenging to work with when bumping up against a specific resistor technology’s limits – so different manufactures have different signal processing and manufacturing calibration for better linearity of the pressure sensor.
-
-
