Tagged: arduino, SDI-12

This topic has 10 replies, 3 voices, and was last updated 2020-03-20 at 10:33 AM by Sara Damiano.

Viewing 10 reply threads

Author

Posts

2020-02-22 at 2:08 PM #13844

quiqueapolo
Participant

Hi:

I am using this library SDI12. I’m trying to read SRS sensor from Decagon. The code used is the provided in the example codes call “d_simple_logger.ino”. The code works well and I can read all the sensors. However, the time to read all the sensors is too high. Due to the code takes 3-4 seconds for reading each sensors. I have 8 sensors attached. In this sense, the time required to read all sensors is around 25 seconds. Could someone tell me how to solve this problem?
2020-02-22 at 7:03 PM #13845

Shannon Hicks
Participant

That example goes through the list of available address to see if a sensor is attached that has a corresponding address, so it definitely takes awhile to go through the whole list. You could rewrite it to only go through the addresses of your sensors and not the entire list. But your sensors have a 600ms sample time (as stated in the datasheet), so you’ll need to add a little delay after that and then you’ll have the poll time, so I’d allow 1 second for each sensor, and with 8 sensors it’ll take 8 seconds total. Is that acceptable?
2020-02-22 at 7:10 PM #13846

quiqueapolo
Participant

Could you tell me the lines I need to rewrite to read only my adress. I have 8 sensors with adress from 0 to 7.
2020-02-23 at 9:12 AM #13847

Shannon Hicks
Participant

That demo sketch is just a sample of how to talk to your sensors, there’s lots of stuff in there that you could trim out if you’re actually trying to collect data at a certain rate. What type of board are you using? Are you planning to store the data on a memory card or just print to the computer’s serial monitor? There’s a 10-second delay on the very last line of the sketch that isn’t needed if you’re trying to cut down on time between samples. Do you want to take one discrete reading from each sensor each time, or are you interested in taking several readings from each sensor an averaging them to limit the “noise” or variation between readings of each sensor? Are you sensors going to be powered continuously or do you want to turn them off between readings? Do you need a timestamp to go along with each data record?
2020-02-23 at 9:18 AM #13848
quiqueapolo
Participant
I achieve to reduce the time to 8 seconds (see the code attached). I am storing the data in a Micro SD Card. The sensors will be powered continuously. I am using an Arduino UNO board. I am interesting in take on discrete reading from each sensor. In the code I also include a Melexis infrared thermometers.

Regards, Enrique
Attachments:
1. NPLAT.ino
2020-02-28 at 11:44 AM #13868

Sara Damiano
Moderator

Is your goal to read all of your sensors and write to your SD card as fast as you possibly can? You could get faster readings by using concurrent sampling on the Decagons like this: https://github.com/EnviroDIY/Arduino-SDI-12/blob/master/examples/k_concurrent_logger/k_concurrent_logger.ino

2020-02-28 at 11:51 AM #13869

Sara Damiano

Moderator

Re-Wrote for you. I didn’t even test if it compiles, but this should get you going with concurrent measurements:

/*The Sensor Orientation Index. This number is two when the sensor is upward facing, one when the sensor is downward facing, and zero
when orientation is undetermined.*/

#include <SDI12.h>
#include <SD.h>
#include <Wire.h>
#include <DS3232RTC.h>
#include <Adafruit_MLX90614.h>

#define DATA_PIN 3
SDI12 mySDI12(DATA_PIN);
const int chipSelect = 10;
unsigned long time;
File logFile;

Adafruit_MLX90614 sensor_52 = Adafruit_MLX90614(0x52);
Adafruit_MLX90614 sensor_53 = Adafruit_MLX90614(0x53);
Adafruit_MLX90614 sensor_03 = Adafruit_MLX90614(0x03);
Adafruit_MLX90614 sensor_07 = Adafruit_MLX90614(0x07);

// keeps track of the wait time for each active addresses
uint8_t waitTime[8] = {
    0,
};
// keeps track of the time each sensor was started
uint32_t millisStarted[8] = {
    0,
};
// keeps track of the time each sensor will be ready
uint32_t millisReady[8] = {
    0,
};
// How many sensors to read
uint8_t numSensors = 8;

void startConcurrentMeasurement(char i)
{
  String command = "";
  command += i;
  command += "C!"; // SDI-12 concurrent measurement command format  [address]['C'][!]
  mySDI12.sendCommand(command);
  delay(30);

  // wait for acknowlegement with format [address][ttt (3 char, seconds)][number of measurments available, 0-9]
  String sdiResponse = "";
  delay(30);
  while (mySDI12.available()) // build response string
  {
    char c = mySDI12.read();
    if ((c != '\n') && (c != '\r'))
    {
      sdiResponse += c;
      delay(5);
    }
  }
  mySDI12.clearBuffer();

  // find out how long we have to wait (in seconds).
  uint8_t wait = 0;
  wait = sdiResponse.substring(1, 4).toInt();

  uint8_t sensorNum = charToDec(i); // e.g. convert '0' to 0, 'a' to 10, 'Z' to 61.
  waitTime[sensorNum] = wait;
  millisStarted[sensorNum] = millis();
  millisReady[sensorNum] = millis() + wait * 1000;
}

void logSDI12Results(char i)
{
  String command = "";
  // in this example we will only take the 'DO' measurement
  command = "";
  command += i;
  command += "D0!"; // SDI-12 command to get data [address][D][dataOption][!]
  mySDI12.sendCommand(command);

  // wait for acknowlegement
  uint32_t startMillis = millis();
  while (!(mySDI12.available() > 7) && (millis() - startMillis < 5000L))
  {
  }
  mySDI12.read();                              // throw away the repeated address
  logfile.print(mySDI12.readStringUntil('+')); // read and log red band
  logFile.print(";");
  logfile.print(mySDI12.readStringUntil('+')); // read and log nir band
  logFile.print(";");
  logfile.print(mySDI12.readStringUntil('\n')); // read and log orientation
  logFile.print(";");

  printBufferToScreen();
  mySDI12.clearBuffer();
}

void setup()
{
  Serial.begin(115200);
  sensor_52.begin();
  sensor_53.begin();
  sensor_03.begin();
  sensor_07.begin();
  Wire.begin();

  if (!SD.begin(chipSelect))
  {
    return;
  }
  while (!Serial)
    ;
  mySDI12.begin();
  delay(500);

  for (byte i = '0'; i <= '9'; i++)
    if (checkActive(i))
    {
      numSensors++;
      setTaken(i);
    }

  logFile = SD.open("hwheat.txt", FILE_WRITE);
  if (logFile)
  {
    logFile.println("fecha;hora;r_red;r_nir;r_orientation;r_red;r_nir;r_orientation;r_red;r_nir;r_orientation;r_532;r_570;orientation;r_532;r_570;orientation;r_532;r_570;orientation;i_532;i_570;orientation;r_red;r_nir;r_orientation;Temp1;Temp2;Temp3;Temp4");
    logFile.close();
  }
}

void lectura_sensores()
{
  logFile.print(sensor_52.readObjectTempC());
  logFile.print(";");
  logFile.print(sensor_53.readObjectTempC());
  logFile.print(";");
  logFile.print(sensor_03.readObjectTempC());
  logFile.print(";");
  logFile.println(sensor_07.readObjectTempC());
}

void loop()
{
  time_t p;
  p = RTC.get();
  logFile = SD.open("hwheat.txt", FILE_WRITE);
  if (logFile)
  {
    logFile.print(String(day(p)) + "/" + String(month(p)) + "/" + String(year(p)) + ";" + String(hour(p)) + ":" + String(minute(p)) + ":" + String(second(p)));

    // Start a concurrent measurement on all of the SDI-12 sensors
    for (char i = '0'; i < '8'; i++)
    {
      startConcurrentMeasurement(i);
    }

    // get all readings
    uint8_t numReadingsRecorded = 0;
    while (numReadingsRecorded < numSensors)
    {
      for (char i = '0'; i < '8'; i++)
      {
        if (millis() > millisReady[charToDec(i)])
        {
          logSDI12Results(i);
          numReadingsRecorded++;
        }
      }
    }
    logFile.print(";");
    lectura_sensores();
    logFile.close();
  }
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

/*The Sensor Orientation Index. This number is two when the sensor is upward facing, one when the sensor is downward facing, and zero

when orientation is undetermined.*/

#include <SDI12.h>

#include <SD.h>

#include <Wire.h>

#include <DS3232RTC.h>

#include <Adafruit_MLX90614.h>

#define DATA_PIN 3

SDI12 mySDI12(DATA_PIN);

const int chipSelect = 10;

unsigned long time;

File logFile;

Adafruit_MLX90614 sensor_52 = Adafruit_MLX90614(0x52);

Adafruit_MLX90614 sensor_53 = Adafruit_MLX90614(0x53);

Adafruit_MLX90614 sensor_03 = Adafruit_MLX90614(0x03);

Adafruit_MLX90614 sensor_07 = Adafruit_MLX90614(0x07);

// keeps track of the wait time for each active addresses

uint8_t waitTime[8] = {

};

// keeps track of the time each sensor was started

uint32_t millisStarted[8] = {

};

// keeps track of the time each sensor will be ready

uint32_t millisReady[8] = {

};

// How many sensors to read

uint8_t numSensors = 8;

void startConcurrentMeasurement(char i)

{

String command = "";

command += i;

command += "C!"; // SDI-12 concurrent measurement command format [address]['C'][!]

mySDI12.sendCommand(command);

delay(30);

// wait for acknowlegement with format [address][ttt (3 char, seconds)][number of measurments available, 0-9]

String sdiResponse = "";

delay(30);

while (mySDI12.available()) // build response string

{

char c = mySDI12.read();

if ((c != '\n') && (c != '\r'))

{

sdiResponse += c;

delay(5);

}

mySDI12.clearBuffer();

// find out how long we have to wait (in seconds).

uint8_t wait = 0;

wait = sdiResponse.substring(1, 4).toInt();

uint8_t sensorNum = charToDec(i); // e.g. convert '0' to 0, 'a' to 10, 'Z' to 61.

waitTime[sensorNum] = wait;

millisStarted[sensorNum] = millis();

millisReady[sensorNum] = millis() + wait * 1000;

}

void logSDI12Results(char i)

{

String command = "";

// in this example we will only take the 'DO' measurement

command = "";

command += i;

command += "D0!"; // SDI-12 command to get data [address][D][dataOption][!]

mySDI12.sendCommand(command);

// wait for acknowlegement

uint32_t startMillis = millis();

while (!(mySDI12.available() > 7) && (millis() - startMillis < 5000L))

{

}

mySDI12.read(); // throw away the repeated address

logfile.print(mySDI12.readStringUntil('+')); // read and log red band

logFile.print(";");

logfile.print(mySDI12.readStringUntil('+')); // read and log nir band

logFile.print(";");

logfile.print(mySDI12.readStringUntil('\n')); // read and log orientation

logFile.print(";");

printBufferToScreen();

mySDI12.clearBuffer();

}

void setup()

{

Serial.begin(115200);

sensor_52.begin();

sensor_53.begin();

sensor_03.begin();

sensor_07.begin();

Wire.begin();

if (!SD.begin(chipSelect))

{

return;

}

while (!Serial)

;

mySDI12.begin();

delay(500);

for (byte i = '0'; i <= '9'; i++)

if (checkActive(i))

{

numSensors++;

setTaken(i);

}

logFile = SD.open("hwheat.txt", FILE_WRITE);

if (logFile)

{

logFile.println("fecha;hora;r_red;r_nir;r_orientation;r_red;r_nir;r_orientation;r_red;r_nir;r_orientation;r_532;r_570;orientation;r_532;r_570;orientation;r_532;r_570;orientation;i_532;i_570;orientation;r_red;r_nir;r_orientation;Temp1;Temp2;Temp3;Temp4");

logFile.close();

}

void lectura_sensores()

{

logFile.print(sensor_52.readObjectTempC());

logFile.print(";");

logFile.print(sensor_53.readObjectTempC());

logFile.print(";");

logFile.print(sensor_03.readObjectTempC());

logFile.print(";");

logFile.println(sensor_07.readObjectTempC());

}

void loop()

{

time_t p;

p = RTC.get();

logFile = SD.open("hwheat.txt", FILE_WRITE);

if (logFile)

{

logFile.print(String(day(p)) + "/" + String(month(p)) + "/" + String(year(p)) + ";" + String(hour(p)) + ":" + String(minute(p)) + ":" + String(second(p)));

// Start a concurrent measurement on all of the SDI-12 sensors

for (char i = '0'; i < '8'; i++)

{

startConcurrentMeasurement(i);

}

// get all readings

uint8_t numReadingsRecorded = 0;

while (numReadingsRecorded < numSensors)

{

for (char i = '0'; i < '8'; i++)

{

if (millis() > millisReady[charToDec(i)])

{

logSDI12Results(i);

numReadingsRecorded++;

}

logFile.print(";");

lectura_sensores();

logFile.close();

}

2020-02-29 at 7:11 AM #13872
quiqueapolo
Participant
Hi Sara:

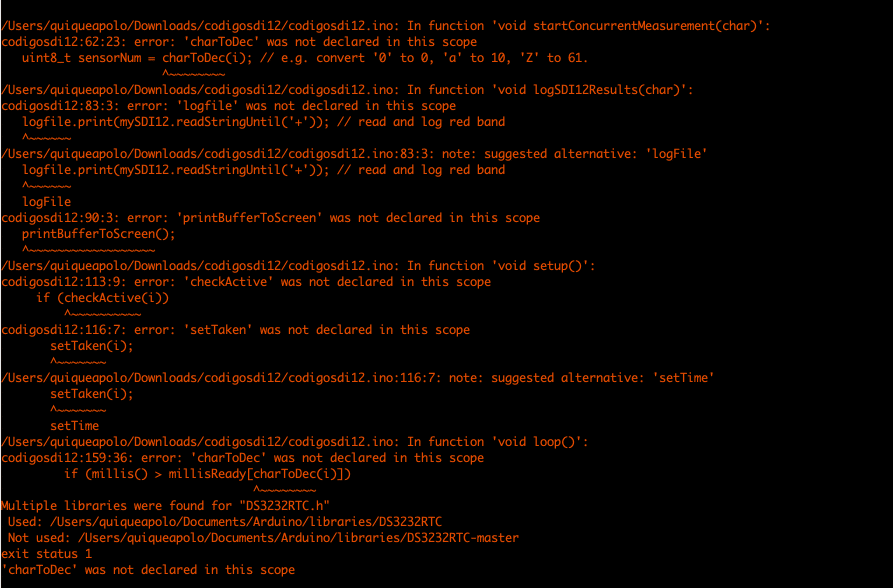

Thank you for your quickly answer. However, when I tried to compile the code several errors were shown (see images attached).

Regards, Enrique
Attachments:
1. Screenshot-2020-02-29-13.11.25.png
2020-03-05 at 10:40 AM #13903

Sara Damiano
Moderator

Delete lines 112-117 of the code I posted.
2020-03-19 at 4:17 AM #13963

quiqueapolo
Participant

Hi again Sara:

I deleted the lines that you say in previous comment. However, the problem do not have solution.

Thanks in advance

2020-03-20 at 10:33 AM #13967

Sara Damiano

Moderator

My intent was to help you by giving you an example of something you could modify to your needs, not to give you a final working program.

This version will compile. I don’t know if it will actually work for your sensors or log data as expected. You will need to test that.

#include <SDI12.h>
#include <SD.h>
#include <Wire.h>
#include <DS3232RTC.h>
#include <Adafruit_MLX90614.h>

#define DATA_PIN 3
SDI12 mySDI12(DATA_PIN);
const int chipSelect = 10;
unsigned long time;
File logFile;

Adafruit_MLX90614 sensor_52 = Adafruit_MLX90614(0x52);
Adafruit_MLX90614 sensor_53 = Adafruit_MLX90614(0x53);
Adafruit_MLX90614 sensor_03 = Adafruit_MLX90614(0x03);
Adafruit_MLX90614 sensor_07 = Adafruit_MLX90614(0x07);

// keeps track of the wait time for each active addresses
uint8_t waitTime[8] = {
    0,
};
// keeps track of the time each sensor was started
uint32_t millisStarted[8] = {
    0,
};
// keeps track of the time each sensor will be ready
uint32_t millisReady[8] = {
    0,
};
// How many sensors to read
uint8_t numSensors = 8;


// converts allowable address characters '0'-'9', 'a'-'z', 'A'-'Z',
// to a decimal number between 0 and 61 (inclusive) to cover the 62 possible addresses
byte charToDec(char i){
  if((i >= '0') && (i <= '9')) return i - '0';
  if((i >= 'a') && (i <= 'z')) return i - 'a' + 10;
  if((i >= 'A') && (i <= 'Z')) return i - 'A' + 37;
  else return i;
}

void startConcurrentMeasurement(char i)
{
  String command = "";
  command += i;
  command += "C!"; // SDI-12 concurrent measurement command format  [address]['C'][!]
  mySDI12.sendCommand(command);
  delay(30);

  // wait for acknowlegement with format [address][ttt (3 char, seconds)][number of measurments available, 0-9]
  String sdiResponse = "";
  delay(30);
  while (mySDI12.available()) // build response string
  {
    char c = mySDI12.read();
    if ((c != '\n') && (c != '\r'))
    {
      sdiResponse += c;
      delay(5);
    }
  }
  mySDI12.clearBuffer();

  // find out how long we have to wait (in seconds).
  uint8_t wait = 0;
  wait = sdiResponse.substring(1, 4).toInt();

  uint8_t sensorNum = charToDec(i); // e.g. convert '0' to 0, 'a' to 10, 'Z' to 61.
  waitTime[sensorNum] = wait;
  millisStarted[sensorNum] = millis();
  millisReady[sensorNum] = millis() + wait * 1000;
}

void logSDI12Results(char i)
{
  String command = "";
  // in this example we will only take the 'DO' measurement
  command = "";
  command += i;
  command += "D0!"; // SDI-12 command to get data [address][D][dataOption][!]
  mySDI12.sendCommand(command);

  // wait for acknowlegement
  uint32_t startMillis = millis();
  while (!(mySDI12.available() > 7) && (millis() - startMillis < 5000L))
  {
  }
  mySDI12.read();                              // throw away the repeated address
  logFile.print(mySDI12.readStringUntil('+')); // read and log red band
  logFile.print(";");
  logFile.print(mySDI12.readStringUntil('+')); // read and log nir band
  logFile.print(";");
  logFile.print(mySDI12.readStringUntil('\n')); // read and log orientation
  logFile.print(";");

  mySDI12.clearBuffer();
}

void setup()
{
  Serial.begin(115200);
  sensor_52.begin();
  sensor_53.begin();
  sensor_03.begin();
  sensor_07.begin();
  Wire.begin();

  if (!SD.begin(chipSelect))
  {
    return;
  }
  while (!Serial)
    ;
  mySDI12.begin();
  delay(500);

  logFile = SD.open("hwheat.txt", FILE_WRITE);
  if (logFile)
  {
    logFile.println("fecha;hora;r_red;r_nir;r_orientation;r_red;r_nir;r_orientation;r_red;r_nir;r_orientation;r_532;r_570;orientation;r_532;r_570;orientation;r_532;r_570;orientation;i_532;i_570;orientation;r_red;r_nir;r_orientation;Temp1;Temp2;Temp3;Temp4");
    logFile.close();
  }
}

void lectura_sensores()
{
  logFile.print(sensor_52.readObjectTempC());
  logFile.print(";");
  logFile.print(sensor_53.readObjectTempC());
  logFile.print(";");
  logFile.print(sensor_03.readObjectTempC());
  logFile.print(";");
  logFile.println(sensor_07.readObjectTempC());
}

void loop()
{
  time_t p;
  p = RTC.get();
  logFile = SD.open("hwheat.txt", FILE_WRITE);
  if (logFile)
  {
    logFile.print(String(day(p)) + "/" + String(month(p)) + "/" + String(year(p)) + ";" + String(hour(p)) + ":" + String(minute(p)) + ":" + String(second(p)));

    // Start a concurrent measurement on all of the SDI-12 sensors
    for (char i = '0'; i < '8'; i++)
    {
      startConcurrentMeasurement(i);
    }

    // get all readings
    uint8_t numReadingsRecorded = 0;
    while (numReadingsRecorded < numSensors)
    {
      for (char i = '0'; i < '8'; i++)
      {
        if (millis() > millisReady[charToDec(i)])
        {
          logSDI12Results(i);
          numReadingsRecorded++;
        }
      }
    }
    logFile.print(";");
    lectura_sensores();
    logFile.close();
  }
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

#include <SDI12.h>

#include <SD.h>

#include <Wire.h>

#include <DS3232RTC.h>

#include <Adafruit_MLX90614.h>

#define DATA_PIN 3

SDI12 mySDI12(DATA_PIN);

const int chipSelect = 10;

unsigned long time;

File logFile;

Adafruit_MLX90614 sensor_52 = Adafruit_MLX90614(0x52);

Adafruit_MLX90614 sensor_53 = Adafruit_MLX90614(0x53);

Adafruit_MLX90614 sensor_03 = Adafruit_MLX90614(0x03);

Adafruit_MLX90614 sensor_07 = Adafruit_MLX90614(0x07);

// keeps track of the wait time for each active addresses

uint8_t waitTime[8] = {

};

// keeps track of the time each sensor was started

uint32_t millisStarted[8] = {

};

// keeps track of the time each sensor will be ready

uint32_t millisReady[8] = {

};

// How many sensors to read

uint8_t numSensors = 8;

// converts allowable address characters '0'-'9', 'a'-'z', 'A'-'Z',

// to a decimal number between 0 and 61 (inclusive) to cover the 62 possible addresses

byte charToDec(char i){

if((i >= '0') && (i <= '9')) return i - '0';

if((i >= 'a') && (i <= 'z')) return i - 'a' + 10;

if((i >= 'A') && (i <= 'Z')) return i - 'A' + 37;

else return i;

}

void startConcurrentMeasurement(char i)

{

String command = "";

command += i;

command += "C!"; // SDI-12 concurrent measurement command format [address]['C'][!]

mySDI12.sendCommand(command);

delay(30);

// wait for acknowlegement with format [address][ttt (3 char, seconds)][number of measurments available, 0-9]

String sdiResponse = "";

delay(30);

while (mySDI12.available()) // build response string

{

char c = mySDI12.read();

if ((c != '\n') && (c != '\r'))

{

sdiResponse += c;

delay(5);

}

mySDI12.clearBuffer();

// find out how long we have to wait (in seconds).

uint8_t wait = 0;

wait = sdiResponse.substring(1, 4).toInt();

uint8_t sensorNum = charToDec(i); // e.g. convert '0' to 0, 'a' to 10, 'Z' to 61.

waitTime[sensorNum] = wait;

millisStarted[sensorNum] = millis();

millisReady[sensorNum] = millis() + wait * 1000;

}

void logSDI12Results(char i)

{

String command = "";

// in this example we will only take the 'DO' measurement

command = "";

command += i;

command += "D0!"; // SDI-12 command to get data [address][D][dataOption][!]

mySDI12.sendCommand(command);

// wait for acknowlegement

uint32_t startMillis = millis();

while (!(mySDI12.available() > 7) && (millis() - startMillis < 5000L))

{

}

mySDI12.read(); // throw away the repeated address

logFile.print(mySDI12.readStringUntil('+')); // read and log red band

logFile.print(";");

logFile.print(mySDI12.readStringUntil('+')); // read and log nir band

logFile.print(";");

logFile.print(mySDI12.readStringUntil('\n')); // read and log orientation

logFile.print(";");

mySDI12.clearBuffer();

}

void setup()

{

Serial.begin(115200);

sensor_52.begin();

sensor_53.begin();

sensor_03.begin();

sensor_07.begin();

Wire.begin();

if (!SD.begin(chipSelect))

{

return;

}

while (!Serial)

;

mySDI12.begin();

delay(500);

logFile = SD.open("hwheat.txt", FILE_WRITE);

if (logFile)

{

logFile.close();

}

void lectura_sensores()

{

logFile.print(sensor_52.readObjectTempC());

logFile.print(";");

logFile.print(sensor_53.readObjectTempC());

logFile.print(";");

logFile.print(sensor_03.readObjectTempC());

logFile.print(";");

logFile.println(sensor_07.readObjectTempC());

}

void loop()

{

time_t p;

p = RTC.get();

logFile = SD.open("hwheat.txt", FILE_WRITE);

if (logFile)

{

logFile.print(String(day(p)) + "/" + String(month(p)) + "/" + String(year(p)) + ";" + String(hour(p)) + ":" + String(minute(p)) + ":" + String(second(p)));

// Start a concurrent measurement on all of the SDI-12 sensors

for (char i = '0'; i < '8'; i++)

{

startConcurrentMeasurement(i);

}

// get all readings

uint8_t numReadingsRecorded = 0;

while (numReadingsRecorded < numSensors)

{

for (char i = '0'; i < '8'; i++)

{

if (millis() > millisReady[charToDec(i)])

{

logSDI12Results(i);

numReadingsRecorded++;

}

logFile.print(";");

lectura_sensores();

logFile.close();

}

Author

Posts

Viewing 10 reply threads

You must be logged in to reply to this topic.

SDI-12 Library

Attachments:

Attachments:

Virtual Workshop: Building an EnviroDIY Monitoring Station
