Reply To: Testing TTL-RS485 Adapters

Home Forums Mayfly Data Logger Testing TTL-RS485 Adapters Reply To: Testing TTL-RS485 Adapters

#15553
Anthony Aufdenkampe
Participant

James, we’ve been playing with hardware designed for this for quite some time (as a subfolder in our SensorModbusMaster repo), and just recently spun our commits/designs into it’s own Mayfly-Modbus-Wing repo. Have you seen this?

Our solder-your own DIY version is described here: https://github.com/EnviroDIY/Mayfly-Modbus-Wing/tree/master/Modbus-Mayfly_WingShield

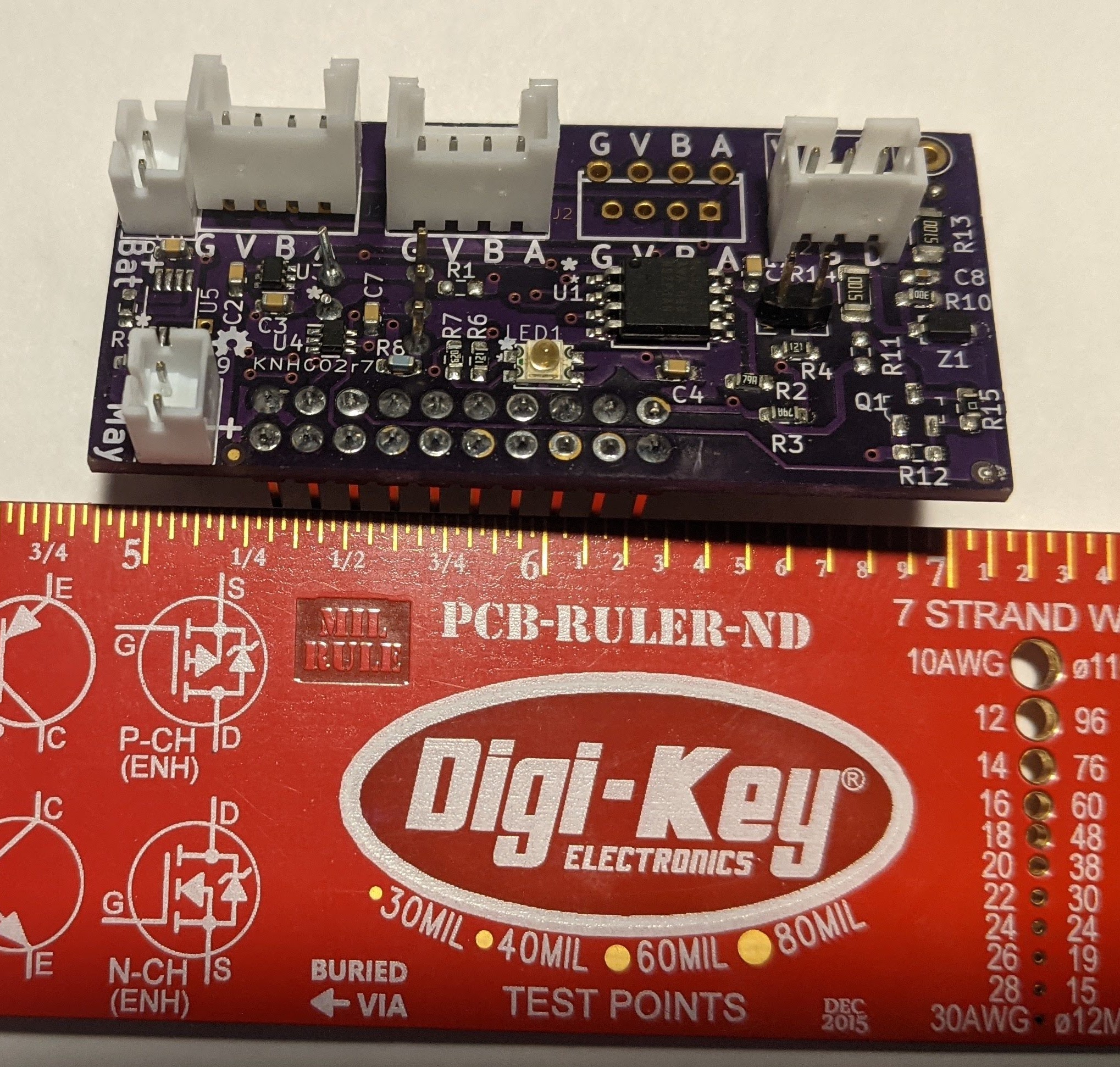

Meanwhile, @neilh20 designed a much improved manufacturable variant that we’re getting made now. It’s shown below and described here:
https://github.com/EnviroDIY/Mayfly-Modbus-Wing/tree/master/knh002-MayflyWingShield.

We have some work to do on improving documentation, but hopefully this will all be helpful.
